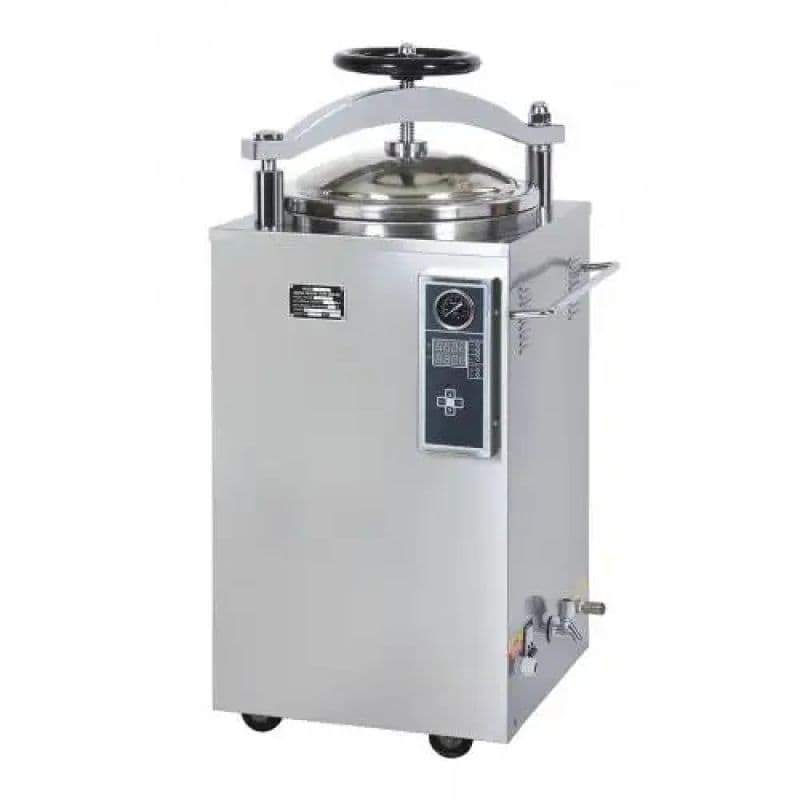

Autoclave Vertical Top Loading 75L
* Fully stainless steel structure.
* Auto discharge the cool air, and steam discharge automatically after sterilization.
* Automatically shut off with beep reminding after sterilization.
* Hand wheel type of quickopen door structure.
* Over temperature & over pressure autoprotection.
* Easy to operate, safe and reliable.
* Door safety lock system.
* With two stainless steel sterilizing baskets.
* LCD display of working status, touch type key.
* Safe protection of water lacking.
* With drying system.
* Self inflating type seal.
Autoclave Vertical Top Loading 75L
Vertical Autoclave Top Loading
Autoclaves are assembled with heating system
Microcomputer controlled system,
Over heat and over pressure protection system,
Which are reliable for the sterilising effects,
Convenient of operation and energy conservation.
MODEL
LS-35HD
LS-50HD
LS-75HD
LS-100HD
Technical Data
Chamber volume
35L
φ318×450mm
50L
φ340×550mm
75L
φ400×600mm
100L
φ440×650mm
Working pressure
0.22Mpa
Working temperature
134℃
Max. working pressure
0.23Mpa
Heat average
≤±1℃
Timer range
0-99min or 0-99hour59min
Temperature adjust range
105-134℃
Power
2.5KW/AC220V 50HZ
3KW/AC220V 50HZ
4.5KW/AC220V 50HZ
Overall dimension(mm）
470×450×1020
520×500×1150
550×530×1180
580×560×1290
Transport dimension（mm）
570×570×1180
610×610×1290
650×650×1330
680×680×1450
G.W/ N.W
70Kg/63Kg
82Kg/74Kg
100Kg/93Kg
110Kg/85Kg
