Spirometer – AirNext with Turbine & Mouthpiece

Spirometer AirNext – Turbine & Mouthpiece

Air Next works with iOS and
Android devices and connects via
bluetooth. Air Next is powered by
2 x 1.5 V AAA alkaline batteries.

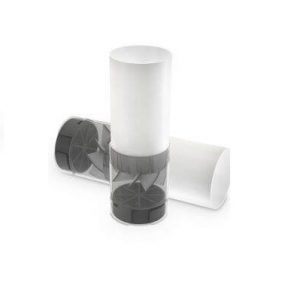

Air Next is designed to work with
single-use NuvoAir disposable
turbines. When performing a spirometry test, the user
exhales into the turbine. The airflow generated sets a rotor in motion. Air Next registers the speed
of the spinning rotor, converts it
and transfers the data via Bluetooth to the smartphone app

TECHNICAL FEATURES:

• Flow/volume measurement system Bi-directional optical
• Measurement method Infrared interruption
• Power supply 2 x 1.5V AAA alkaline bateries
• Dimensions 98 x 62 x 26 mm
• Weight 75g
• Flow range 0 – 14 L/s
• Volume accuracy ± 3%
• Flow accuracy ± 5%
• Dynamic resistance at 12 L/s <0.5 cm H2O/L/s
• Operating conditions T: min +10°C/max +40°C
• RH: min 10%/max 95%
• ALT: max 2000m
• Conditions of storage T: min -20°C/max +60°C
• RH: min 10% /max 95%
• P: min 500mBar/max
• ALT: ≤ 5000m
• Life expectancy 10 years
• Regulations applicable: MDD 93/42/EEC
• ISO 26782
• ISO 23747
• Electrical Safety IEC 60601-1
• Electro Magnetic Compatibility
